Dosing system for adhesive processing

NODOPOX wind

Possible applications

  • Adhesive filling
  • Wind blade production

This drum-following plate system is a system solution for the highly efficient production and processing of synthetic resin-based adhesives. The configuration of the NODOPOX wind is tailored to the requirements in wind industry.

It consists of a mobile basic system, which is supplemented by modules from the existing modular system. The system is designed as a 2K system, with an option for refilling resin and hardener. The material is obtained directly from the 200 l supplier drums. The mixing ratio is defined and controlled via the integrated Siemens operating panel. Potlife, shotsize  and output can be set via the machine control on the touch screen.

To improve process safety and operator safety, we recommend to choose the module „vacuum assisted follower plate“ from our vacuum options.

For information on available components and configurations, please contact our sales team.

Basic Equipment

  • Suitable for pasty resins
  • Flow rate specifiable within 5 l to 20 l/min
  • Flow rate controlled
  • Adjustable mixing ratio
  • Disposable rotating (dynamic) plastic mixer
  • Material delivery from supplier drum: 200 l
  • Control: TARTLER software, operation via touch panel
  • Required air pressure of 6 – 8 bar
  • Power supply: 400 Volt
  • Mobile, powder-coated steel frame
  • Turnable handling arm (4.1 m high, 4.26 m long)
  • Various coupling devices for common towing units

Technical Datas

Components2K
Viscosity rangefrom 60.000 mPas
Mixing ratioAdjustable mixing ratio
Flow rate Flow rate specifiable within 5 l to 20 l/min
Control systemTARTLER software, operation via touch panel
Container200 l
Basis equipment
  • Volume flow controlled
  • Turnable handling arm (4.1 m high, 4.26 m long)
  • Rotating (dynamic) disposable plastic mixer
  • Mobile, powder-coated steel frame
  • Various coupling devices for common towing units
Available modules
  • Refilling / buffer container (4-drum system)
  • Electric/pneumatic unwind and re-wind unit for up to 52m long power and air connection cables
  • Vacuum assisted follower plate
  • Integrated air compressor

Modular Components

A dosing system of NODOPOX wind series can be equipped with following modules. As a special machine manufacturer we adapt all machines to the respective process conditions

  • Vacuum-assisted follower plate deaeration
    Vacuum-assisted follower plate deaeration
    pastöse Komponenten
  • Refill
    Refill
    Liquid components, pastöse Komponenten
vacuum-assisted follower plate
vacuum-assisted follower plate
Vacuum-assisted follower plate deaeration

Vacuum-assisted follower plate deaeration not only increases process and work safety but also reduces material loss.

The follower plate is lowered by extracting the air between the material surface and the follower plate until it sits tightly on the material. This drum change procedure is operator-friendly, prevents dangerous splashing and minimizes material loss, as no material has to be extracted via ball valve or similar outlet.

The machine operator can be sure that there is no harmful air, which would hinder the pumping process, between the follower plate and the material surface. The air is extracted at the push of a button. No manual intervention is required.

You can find more information on the subject of “drum change” here:

Categories :
pastöse Komponenten
Refill

To keep the dosing process running longer, we offer refills from IBCs or drums. There are different solutions for the realization of a refill.

Automatic Refill

  • 1st option: Dosing containers are connected to a mobile refilling station (modern connection with couplings without loss of material)
  • 2nd option: Dosing containers are connected directly on the base frame with e.g. an IBC
  • 3rd option: Refill containers are also located on the base frame

The process is controlled via automatic refilling e.g. when a minimum sensor level is reached.

Vacuum Refill

If the material must not come into contact with air, we offer dosing containers in vacuum atmosphere. When refilling, the negative pressure is used to “pull” the material out of the refill containers.

Free Refill

The free refill, also called “free-flow”, uses gravimetry. The material flows from the higher positioned refill container into the dosing containers. No pump is required.

Categories :
Liquid components, pastöse Komponenten

Design Examples

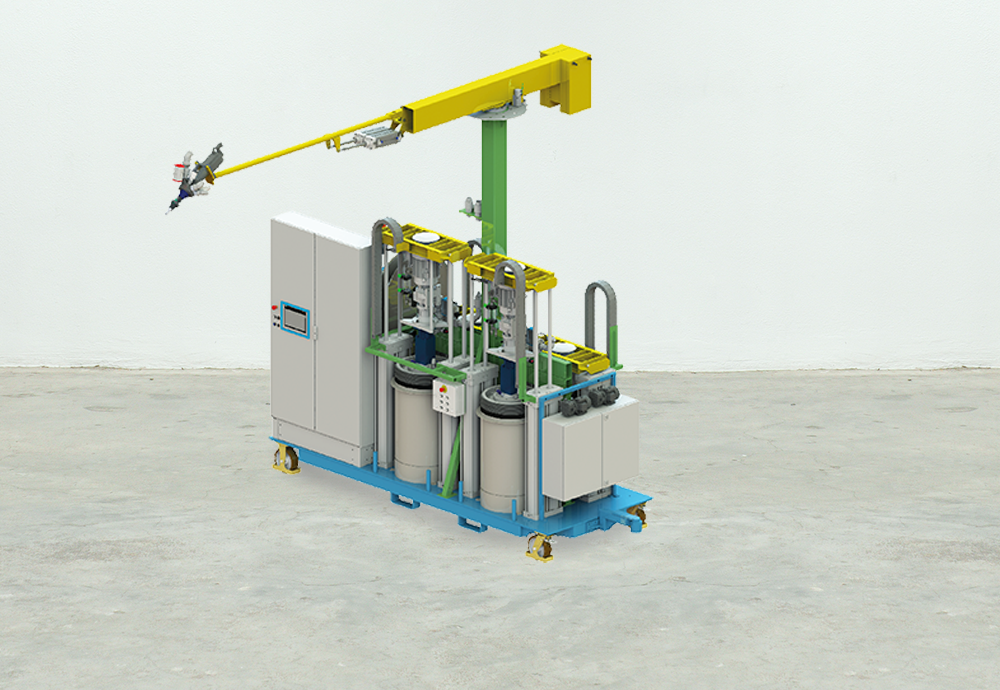

NODOPOX wind 1 fully equipped
NODOPOX wind

Fully equipped model of the dosing system for adhesive processing in wind industry

  1. Volume flow control, self-regulation of mixing ratio and output
  2. Mixing head boom arm (4.1 m high, 4.26 m long)
  3. Mobile, powder-coated steel base frame
  4. Couplings for different movers
  5. Vacuum assisted drum change for A/B component
  6. Automatic refilling from 200 l delivery drums A/B
  7. Electric/pneumatic unwinder for up to 52 m power and air connection cables
NODOPOX wind 2 (ohne Abroller)
NODOPOX wind

Dosing and mixing systems for adhesive processing, tailored to requirement in the wind industry

  1. Volume flow control, self-regulation of mixing ratio and output
  2. Mixing head boom arm (4.1 m high, 4.26 m long)
  3. Mobile, powder-coated steel base frame
  4. Couplings for different movers
  5. Vacuum assisted drum change for A/B component
  6. Automatic refilling from 200 l delivery drums A/B
NODOPOX wind 2 (ohne Abroller, NF)
NODOPOX wind

Dosing and mixing systems for adhesive processing in the wind industry

  1. Volume flow control, self-regulation of mixing ratio and output
  2. Mixing head boom arm (4.1 m high, 4.26 m long)Mobile, powder-coated steel base frame
  3. Couplings for different movers
  4. Vacuum assisted drum change for A/B component
NODOPOX wind 2 (ohne Abroller, NF, Vakuum)
NODOPOX wind

Dosing and mixing systems for adhesive processing in the wind industry

  1. Volume flow control, self-regulation of mixing ratio and output
  2. Mixing head boom arm (4.1 m high, 4.26 m long)
  3. Mobile, powder-coated steel base frame
  4. Couplings for different movers
previous arrow
next arrow
NODOPOX wind 1 fully equipped
NODOPOX wind 2 (ohne Abroller)
NODOPOX wind 2 (ohne Abroller, NF)
NODOPOX wind 2 (ohne Abroller, NF, Vakuum)
previous arrow
next arrow

Data Sheet

Download link for more details about NODOPOX wind.

The right machine for your needs – we are happy to support you!

We would like to provide you with the best possible advice and require important information on your perfect metering and mixing system for the initial contact. Use our inquiry form – quick, easy, uncomplicated.

We will be happy to advise you!

Michael Welter

Sales Wind Industry
Phone: +49 (0)6061 9672-21
m.welter@tartler.com

We will be happy to advise you!

Markus Fesel

Technischer Vertrieb & Projektmanagement
Phone: +49 (0)6061 9672-13
m.fesel@tartler.com
